CloudConnexa: Options to Address Overlapping Subnet in OpenVPN Cloud

Description: The customer set up site-to-site by deploying Network Connectors and would like to access the server/device on the LAN despite overlapping IP address ranges(sample below network diagram).

Resolution: There are 2 Options to address the overlapping subnet in CloudConnexa.
PLEASE note that the 2 options are not possible to use as a combined solution.

(Options 1) Using Domain of Networks and Creating DNS Records.
CloudConnexa - User Guide - Remote access to private networks with overlapping IP address space

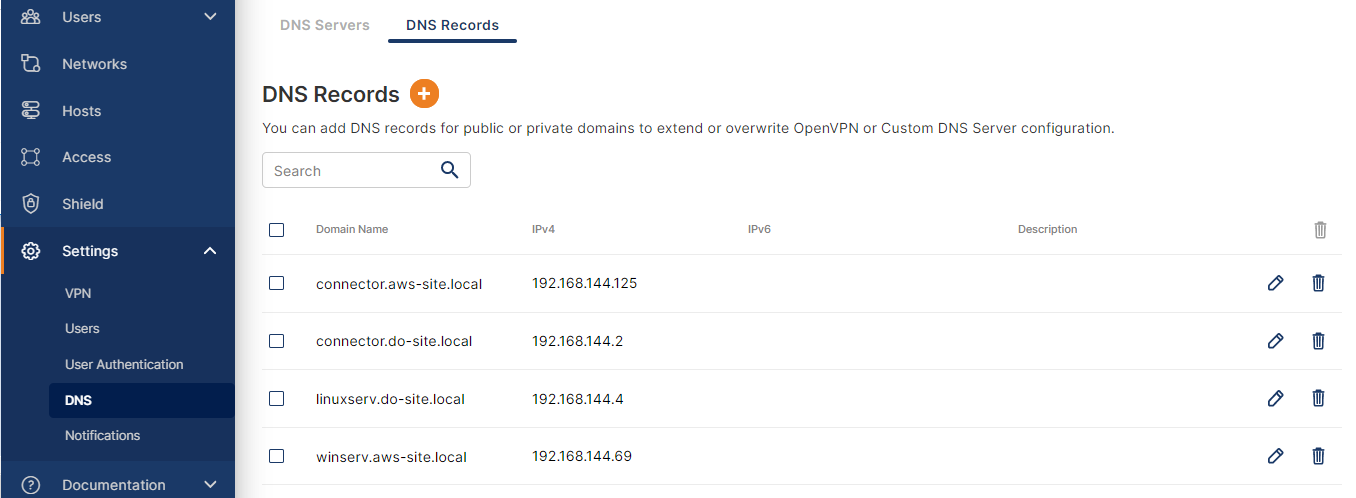

See below the result of the above sample network diagram with the reachability to the connectors and servers from the connected VPN user using Option 1.

(Option 2) Using Domain of Networks and Enabling Allow Embedded IP
CloudConnexa - How to address Overlapping Subnet in CloudConnexa

See below the result of the above sample network diagram with the reachability to the connectors and servers from the connected VPN user using Option 2.
