CloudConnexa: Using Access Group to Filter User Group to Access Certain Subnets or IP Addresses

Description: The customer has deployed a network connector from CloudConnexa and would like to filter the Groups to access certain subnets or IP Addresses from an IaaS provider.

Resolution: From your CloudConnexa Portal, go to Networks > IP Services and create an IP Service, then apply It to the Access Groups in CloudConnexa.

From this example, a User from Group A only has access to 172.31.3.0/24 and Group B has access to the entire subnet of 172.31.0.0/20.

Step 1:

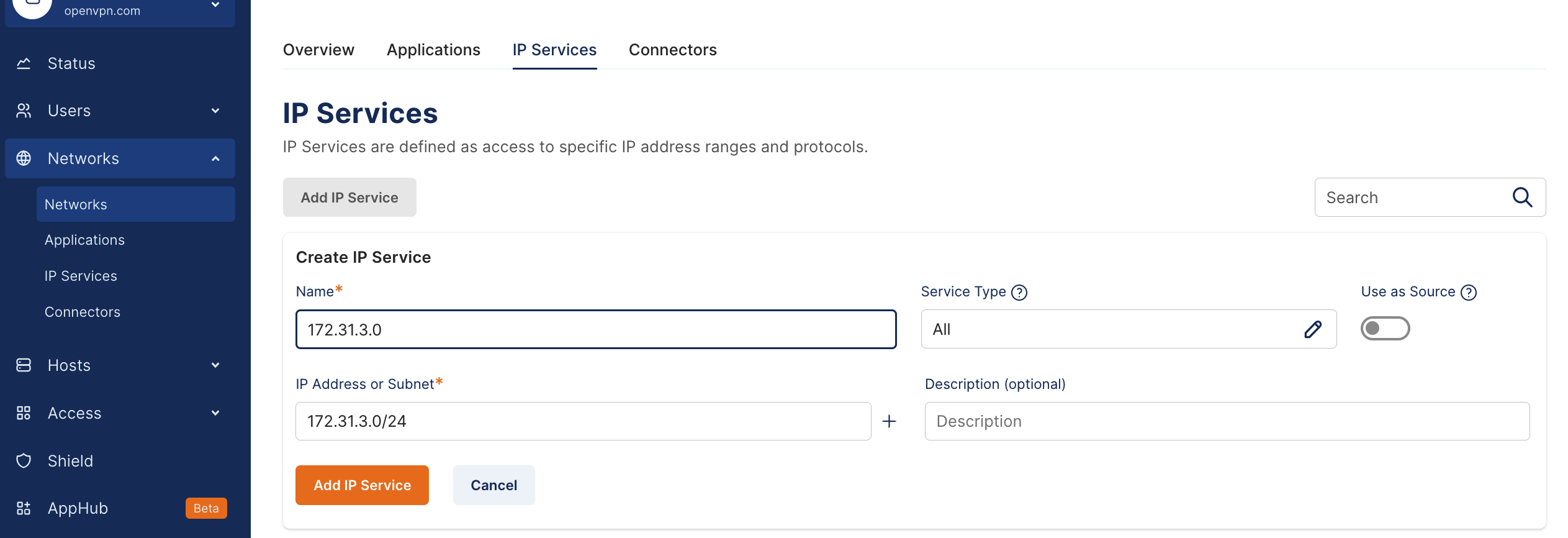

From your CloudConnexa Portal, go to > Networks > select the created Networks > IP Services > Add IP Service.





Step 2:

Next, change the Topology from the default setting Full-Mesh to Custom to use the Access group.

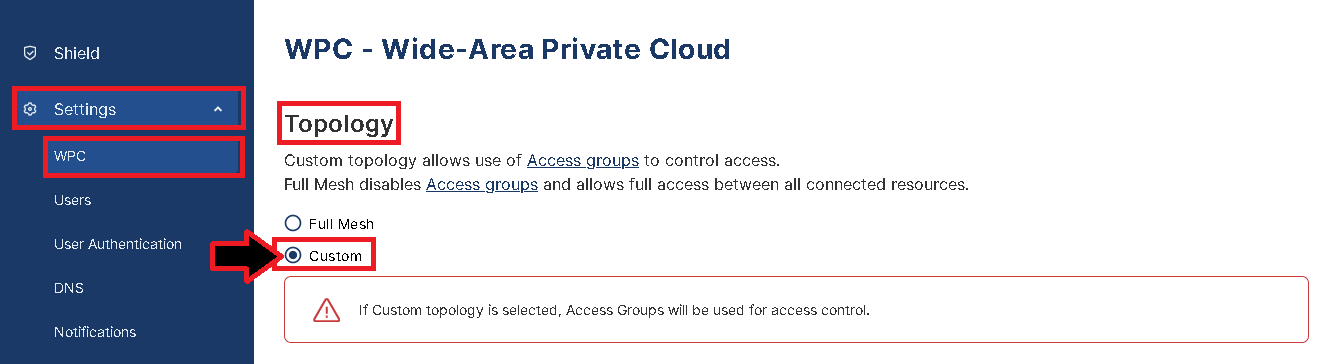

From your CloudConnexa Portal, go to Settings > WPC > Edit > Topology > Custom > Update (see the screenshot below).

Step 3:

After changing the Topology, proceed to configure your Access groups which specify the access relationship between Sources (i.e. Who?) and Destinations (i.e. What?). From your CloudConnexa Portal, go to  Access > Groups > Create Access Group > Fill in the 'Access Group Name' > Source: User Groups (ex. Group A) > Destination: select the IP Services "172.31.3.0" > Create (see the screenshot below).

 Step 4:

Do the same process as Step 3 but for different Sources(User Groups: Group B) and Destinations. Select IP Services "172.31.0.0". (see the screenshot below).



Note The Default Full Mesh Access Group already exists.

Step 5:

You can delete the default Access group when more than one Access group exists, or after you've created your Access group. (see below sample screenshot)



Step 6:

Test the Access Groups from the connected WPC users of Group A & B to access the subnet that is allowed for the Groups.
