Access Server: Configure a Teltonika (RutOS) Router to Connect to Access Server

Description: You can use a Teltonika router as a VPN client with your Access Server.

Follow the steps below.

Step 1: Create an Access Server user account for your Teltonika router

1. Sign in to Access Server's Admin Web UI.
2. Click User Management > User Permissions.

3. Under New Username, type the username for your Teltonika. For our example, we enter "Teltonika."

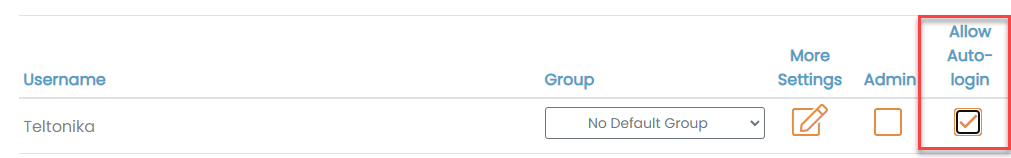

4. Check Allow Auto-login.

5. Click Save Settings and Update Running Server.

Step 2: Download a connection profile (.ovpn file) for your Teltonika router

1. Click User Management > User Profiles.

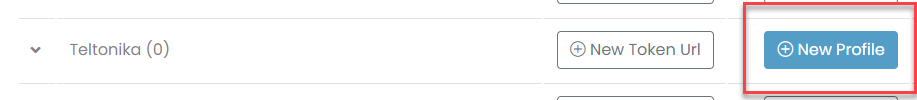

2. Select your Teltonika user account and click New Profile.

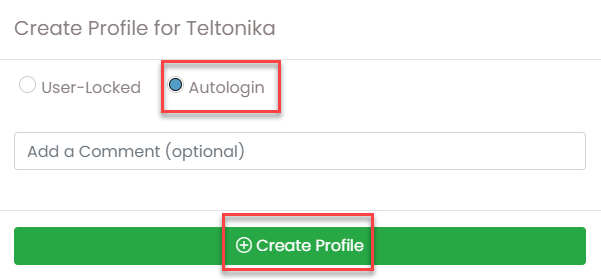

3. In the pop-up module, select Autologin and click Create Profile.

   • The connection profile (.ovpn file) downloads to your computer. We recommend changing the name to the username for easy management:
     >

That finishes the Access Server configuration.

Step 3: Configure the Teltonika router

1. Sign in to the Teltonika router UI.
2. Click Services > VPN > OpenVPN.


3. Under ADD NEW INSTANCE:
   • NEW CONFIGURATION NAME: Enter a name for your client configuration. We use "Test" for our example.
   • ROLE: Select Client.
4. Click ADD.

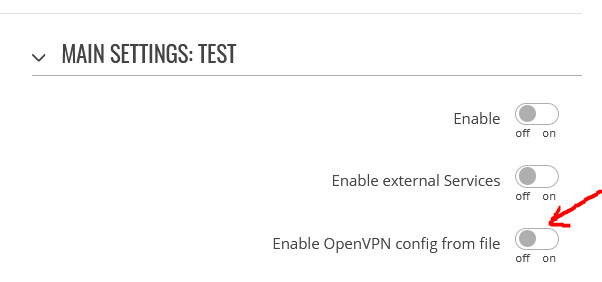

5. The Client Settings for your new instance display. Turn Enable OpenVPN config from file on.


6. Click BROWSE for OpenVPN configuration file and select the connection profile generated in step two above.


7. Set Enable to on and click SAVE & APPLY.


   • The configuration changes could take a few seconds (You can refresh the Teltonika router UI with F5 in your browser if you don't see any changes.)
8. After this, your Teltonika Router is connected:



Step 4: Verify connection

You can verify that the Teltonika router is connected from Access Server's Admin Web UI.

1. Sign in to the Admin Web UI.
2. Click Status > Current Users.

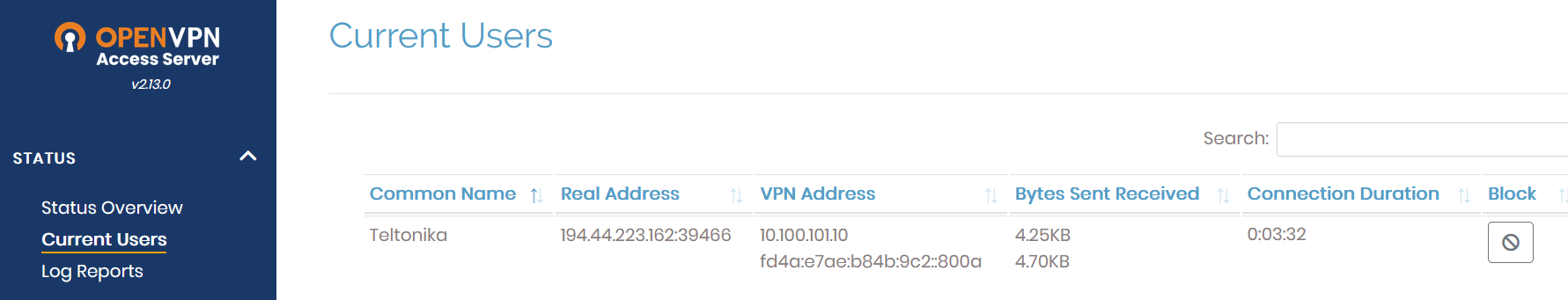

3. The Teltonik connection details display:



If you have additional questions, please submit a ticket.
