Access Server: Enable and Forward Syslog Information to a Wazuh Server

Description

Enabling Syslog logging on Access Server enhances visibility into system activity by sending logs to a centralized platform like Wazuh. This improves monitoring, troubleshooting, auditing, and compliance by allowing you to:

• Receive real-time alerts.
• Centralize log management.
• Analyze and respond to security and performance events.

This article explains how to turn on Syslog on Access Server and forward logs to a Wazuh server.

Example IP Addresses

In this example, we use the following IP addresses:

• Access Server IP: 192.0.2.15
• Wazuh Server IP: 192.0.2.10

Step 1: Enable Syslog on Access Server

1. Connect to Access Server console and get root privileges.
2. Open the Access Server configuration file:


   nano /usr/local/openvpn_as/etc/as.conf

3. At the bottom of the file, add:
   SYSLOG=1
   Important: Ensure SYSLOG is in all uppercase letters.
4. Save and exit (Ctrl+X, then Y, then Enter).
5. Restart the Access Server service:


   service openvpnas restart

6. Create a new rsyslog configuration file for Access Server:


   nano /etc/rsyslog.d/openvpnas.conf

7. Add the following line to forward logs to your Wazuh server:


   if $programname == 'openvpnas' then action(type="omfwd" target="192.0.2.10" port="514" protocol="tcp")

   Important: Replace 192.0.2.10 with the IP address or FQDN of your Wazuh server.
8. Save and exit (Ctrl+X, then Y, then Enter).
9. Restart the syslog daemon:


   service rsyslog restart

Step 2: Configure Syslog on the Wazuh server

1. Connect to the Wazuh console and get root privileges.
2. Edit the Wazuh configuration file:


   nano /var/ossec/etc/ossec.conf

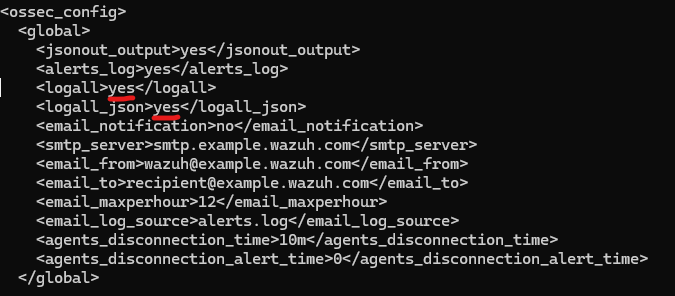

3. Set the logall and logall_json to options to yes.

4. In the <remote> section, add or modify the following configuration:


   <remote>
      <connection>syslog</connection>
      <port>514</port>
      <protocol>udp</protocol>
      <allowed-ips>192.0.2.15/32</allowed-ips>
      <local_ip>192.0.2.10</local_ip>
   </remote>

   • <allowed-ips>: The IP address of the Access Server sending logs.
   • <local_ip>: The IP address of the Wazuh server receiving logs.
5. Save and exit (Ctrl+X, then Y, then Enter).
6. Restart the Wazuh manager:


   service wazuh-manager restart

Viewing logs on the Wazuh server

After setup, you'll find Access Server logs in one of these locations:

• /var/ossec/logs/archives/archives.log
• /var/ossec/logs/archives/archives.json

If you don't want to retain logs in those files, set the following option in ossec.conf:

<logall>no</logall>

If you have additional questions, please submit a ticket.
